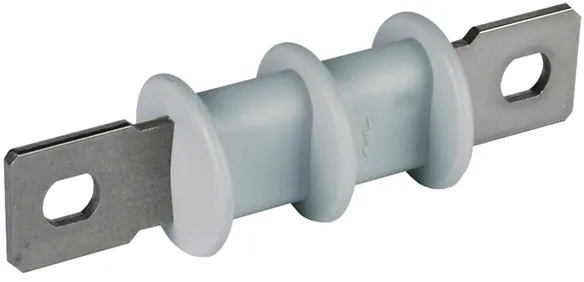

Protective Spark Gap

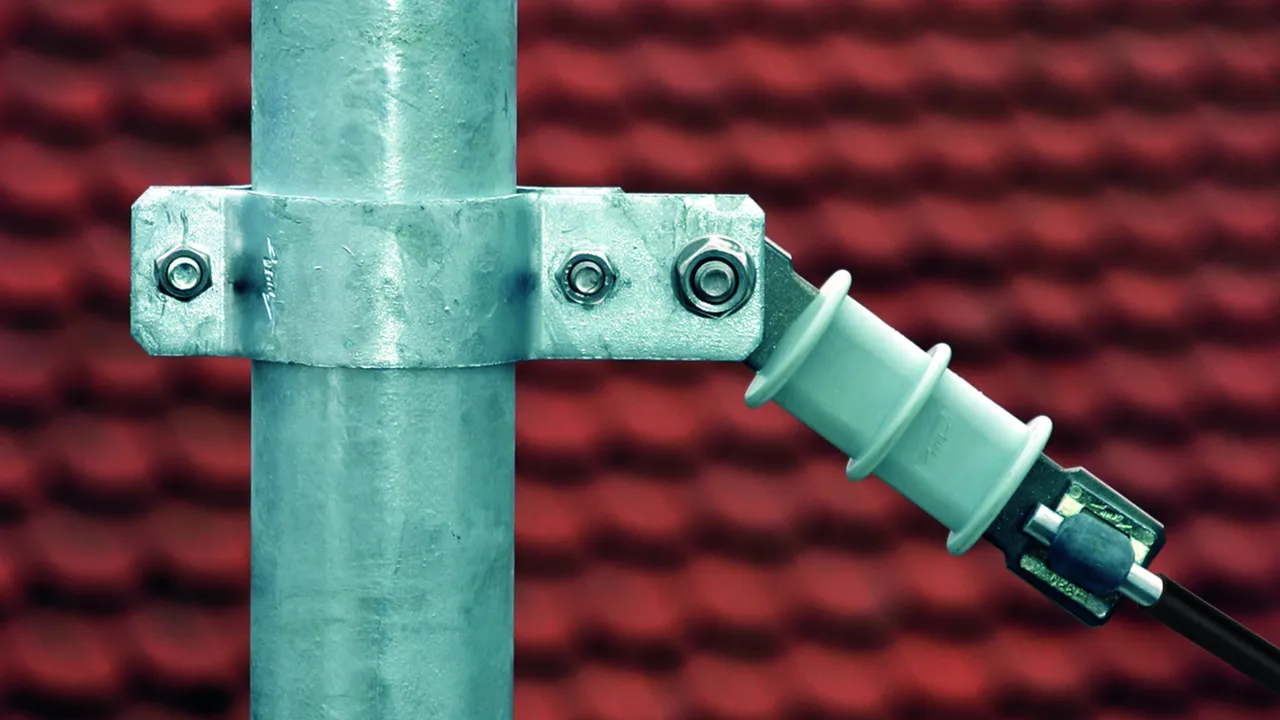

For indirect connection of an overhead line roof pole to the external lightning protection system
Corrosion-resistant stainless steel connections

DSFS

Plastic-insulated protective spark gap for indirect connection of an overhead line roof pole to the external lightning protection system.

1 产品

全球贸易项目代码 4013364057494, 海关HS编码: 85369095, 总重: 127.00 g, 包装单位: 1.00 pc(s)


附加信息

Brand: DEHN
Type: DSFS
Part No.: 920000
or equivalent.

技术参数

100% lightning impulse sparkover voltage (1.2/50 µs) (U_rimp )	~ 25 kV
Nominal discharge current (8/20 µs) (I_n )	25 kA
Power frequency sparkover voltage (50 Hz) (U_aw )	~ 10 kV

进入收藏夹

进入网上商店

100% lightning impulse sparkover voltage (1.2/50 µs) (U_rimp )	~ 25 kV
Nominal discharge current (8/20 µs) (I_n )	25 kA
Degree of protection	IP 54
Power frequency sparkover voltage (50 Hz) (U_aw )	~ 10 kV
Material (connection)	stainless steel (V2A)

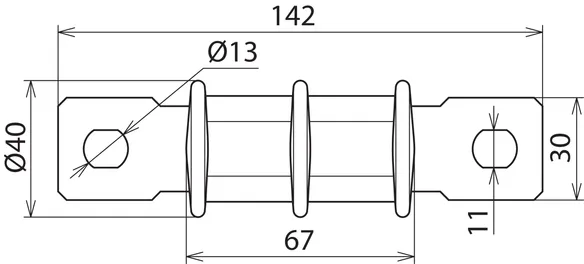

Connection	slot Ø13x11 mm
Enclosure material	plastic
