BLITZDUCTOR SP – 保护模块 CN

  • 1对线的高效保护
  • 无串联阻抗
  • 用于防雷分区0A – 2及后续分区

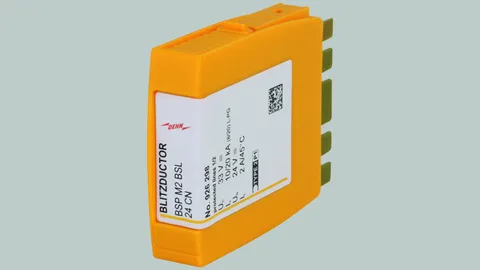

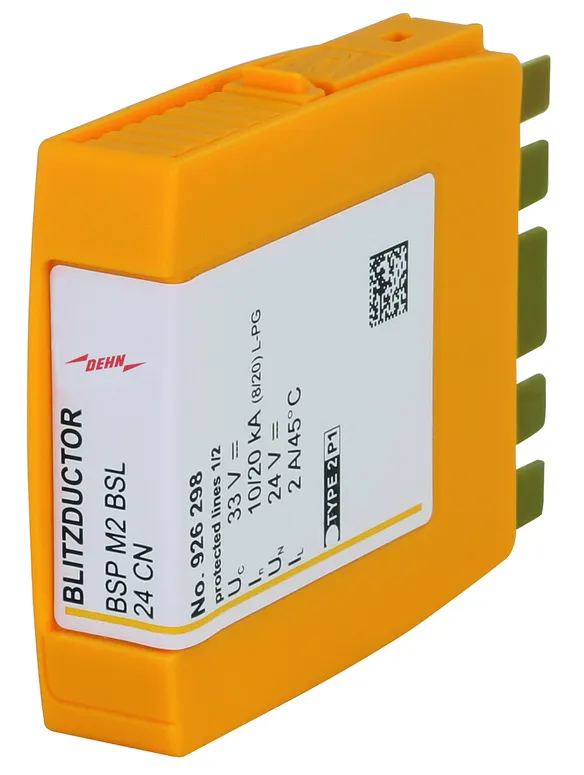

BSP M2 BSL 24 CN

电涌保护模块,节省空间,用于电气隔离的平衡接口的1对线保护。

1 产品

货号 926298 BSP M2 BSL 24 CN

全球贸易项目代码 6942299503319, 海关关税号: , 总重: 32.00 g, 包装单位: 1.00



附加信息

BSP M2 BSL 24 CN 复合雷电流/电涌保护模块
BLITZDUCTOR SP 复合雷电流/电涌保护模块
SPD 分类:Type1 / P1
依据 IEC 61643-21 测试
依据 IEC 61643-22 能量协调

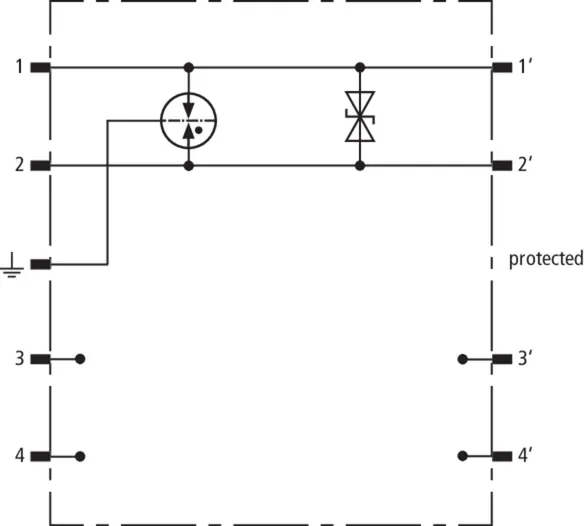

用于保护1对线的平衡接口
可插入BXT BAS / BSP BAS 2 / BSP BAS 4 底座
标称电压: 24 V
直流最大持续工作电压: 33 V
标称电流 (45 °C): 2.0 A
D1 每线雷电冲击电流 (10/350 μs): 1 kA
C2 每线标称放电电流 (8/20 μs): 10 kA
每线串联阻抗: 0 ohms

制造商: DEHN
型号: BSP M2 BSL 24 CN
货号: 926298
其他类似产品

认证



技术参数

SPD分类 Q
直流最大持续工作电压 (UC ) 33 V
C2 总标称放电电流 (8/20 µs) (Itotal ) 20 kA
每线串联阻抗 0 ohms
