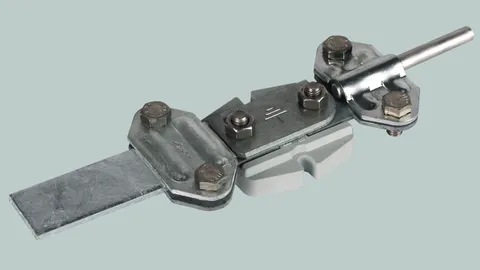

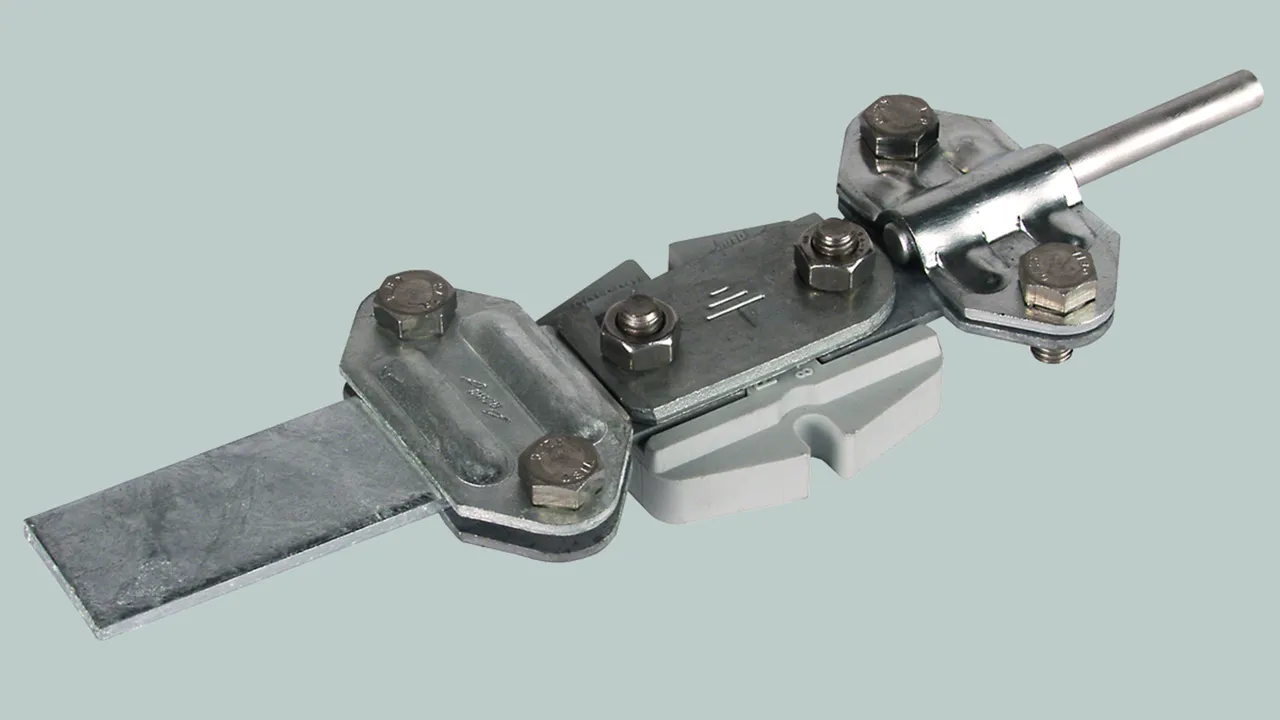

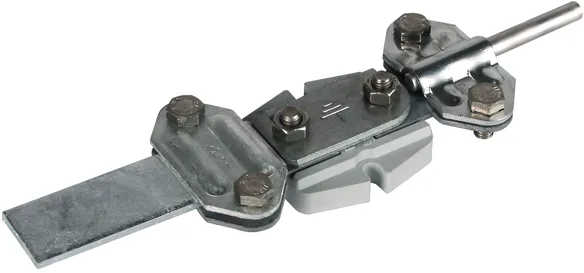

FIX Test Joint

With insulating piece and disconnetion lug.

1 产品

货号 453100 FTS 8.10 FL30.40 IS STTZN

全球贸易项目代码 4013364025523, 海关HS编码: 85359000, 总重: 342.90 g, 包装单位: 10.00 pc(s)


附加信息

FIX test joints
FIX test joints with insulating piece and
disconnection lug for connecting the down
conductor to the earth entry
Material: St/tZn

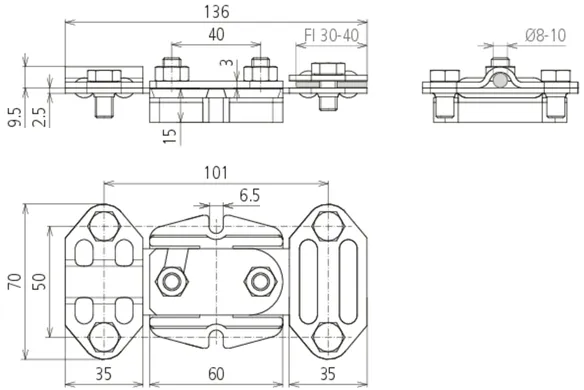

Clamping range Rd / Fl: 8-10 / 30-40 mm
Standard: EN 62561-1

Brand: DEHN
Type: FTS 8.10 FL30.40 IS STTZN
Part No.: 453100
or equivalent.

认证



技术参数

Material St/tZn
Clamping range Rd / Fl 8-10 / 30-40 mm
Insulating piece plastic grey ●
Standard EN 62561-1
Version for conductor Rd / Rd 8-10 mm part no. 453 102 available upon request.
*) For exact assignment, see test certificate.
