Connection Clamps with Thrust Piece

For connection to steel constructions and steel sheets with a single-screw technique.

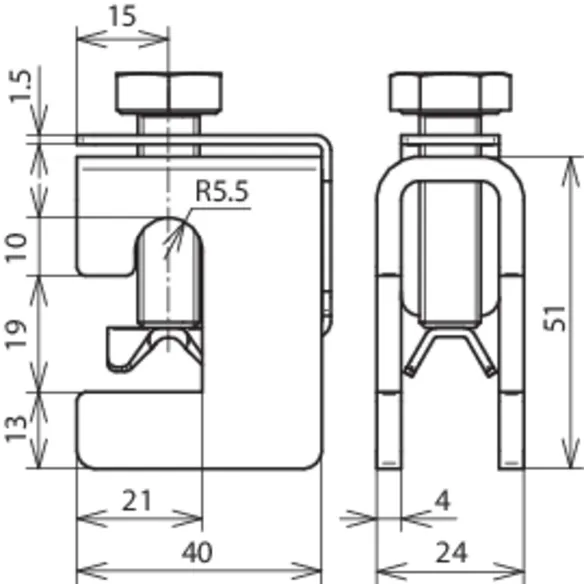

Small design

Lengthwise or crosswise connection.

2 产品

货号 372018 AK 6.10 DS KBF5 18 STTZN

全球贸易项目代码 4013364104624, 海关HS编码: 85359000, 总重: 161.90 g, 包装单位: 25.00 pc(s)


附加信息

Connection clamp with thrust piece, small, St/tZn
Conneciton clamp with thrust piece for connection to steel constructions and steel plates
Clamping range: 5-18 mm
Material of clamp: St/tZn
Clamping range Rd: 6-10 mm
Connection direction: lengthwise / crosswise
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 DS KBF5 18 STTZN
Part No.: 372018
or equivalent.

认证



技术参数

Clamping range 5-18 mm
Material of clamp St/tZn
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372018加入购物车。

进入网上商店

货号 372019 AK 6.10 DS KBF5 18 V2A

全球贸易项目代码 4013364104631, 海关HS编码: 85359000, 总重: 158.10 g, 包装单位: 25.00 pc(s)


附加信息

Connection clamp with thrust piece, small, StSt
Conneciton clamp with thrust piece for connection to steel constructions and steel plates
Clamping range: 5-18 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Connection direction: lengthwise / crosswise
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 DS KBF5 18 V2A
Part No.: 372019
or equivalent.

认证



技术参数

Clamping range 5-18 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372019加入购物车。

进入网上商店

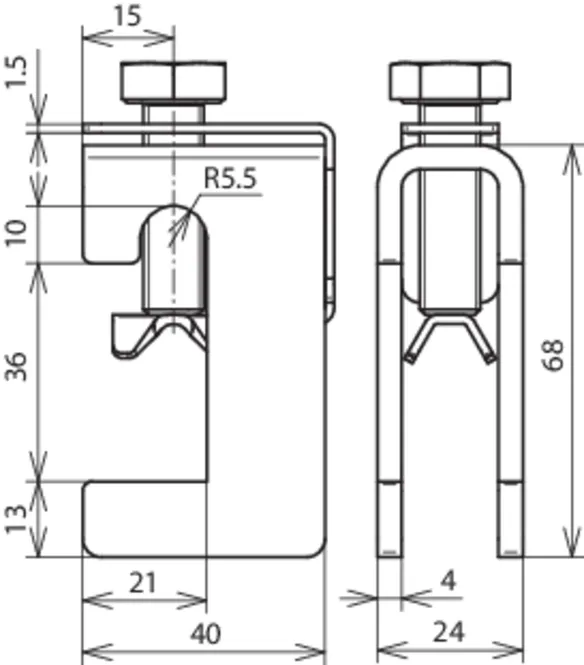

Large design

Lengthwise or crosswise connection.

1 产品

货号 372035 AK 6.10 DS KBF18 35 STTZN

全球贸易项目代码 4013364104648, 海关HS编码: 85359000, 总重: 181.10 g, 包装单位: 25.00 pc(s)

前代产品


附加信息

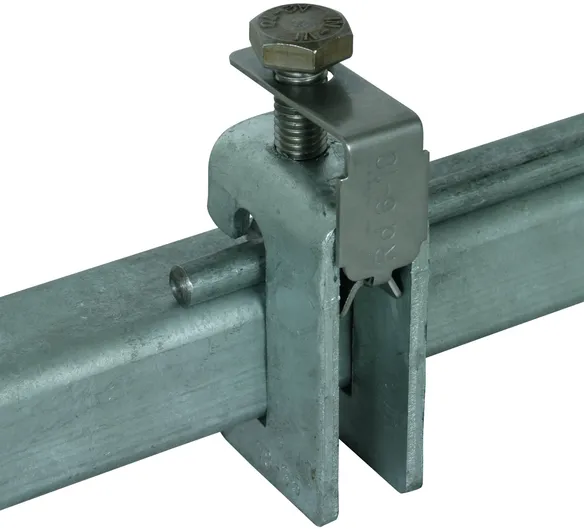

Connection clamp with thrust piece, large, St/tZn
Connection clamp with thrust piece for connection to steel constructions and steel sheets
Clamping range: 18-35 mm
Material of clamp: St/tZn
Clamping range Rd: 6-10 mm
Connection direction: lengthwise / crosswise
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 DS KBF18 35 STTZN
Part No.: 372035
or equivalent.

认证



技术参数

Clamping range 18-35 mm
Material of clamp St/tZn
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.
