Rod Holders for External Thermal Insulation Composite Systems

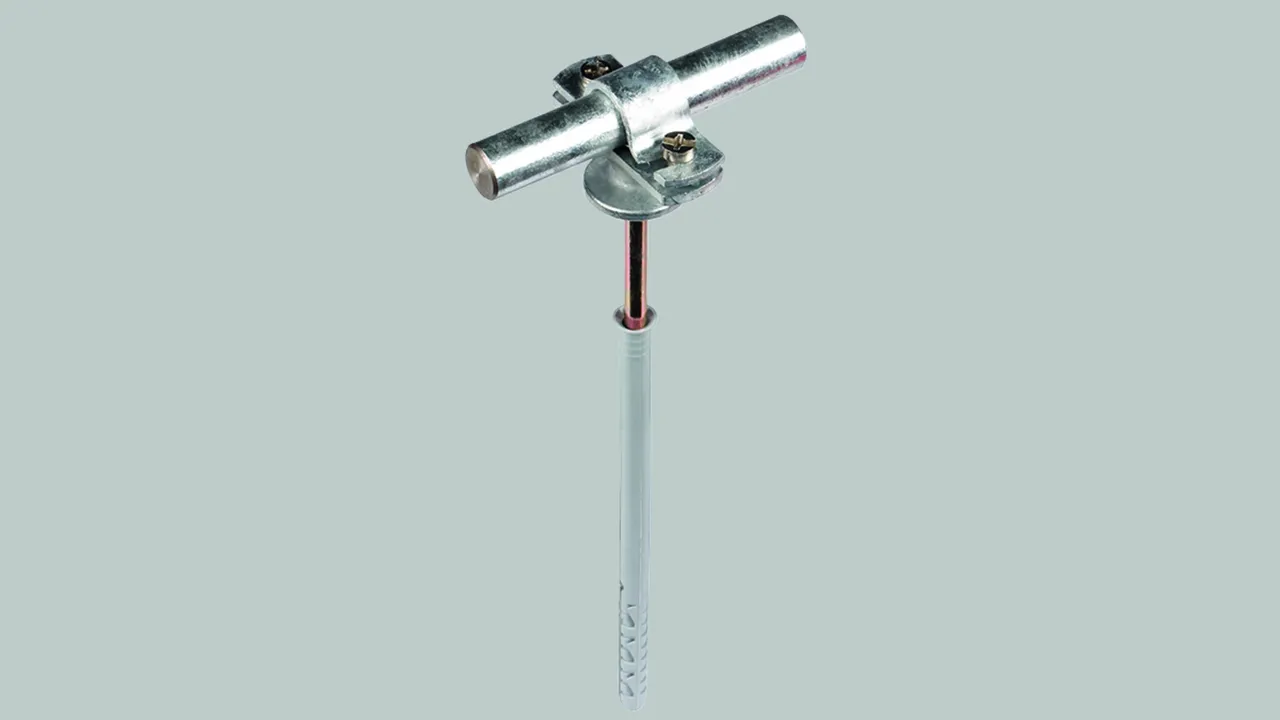

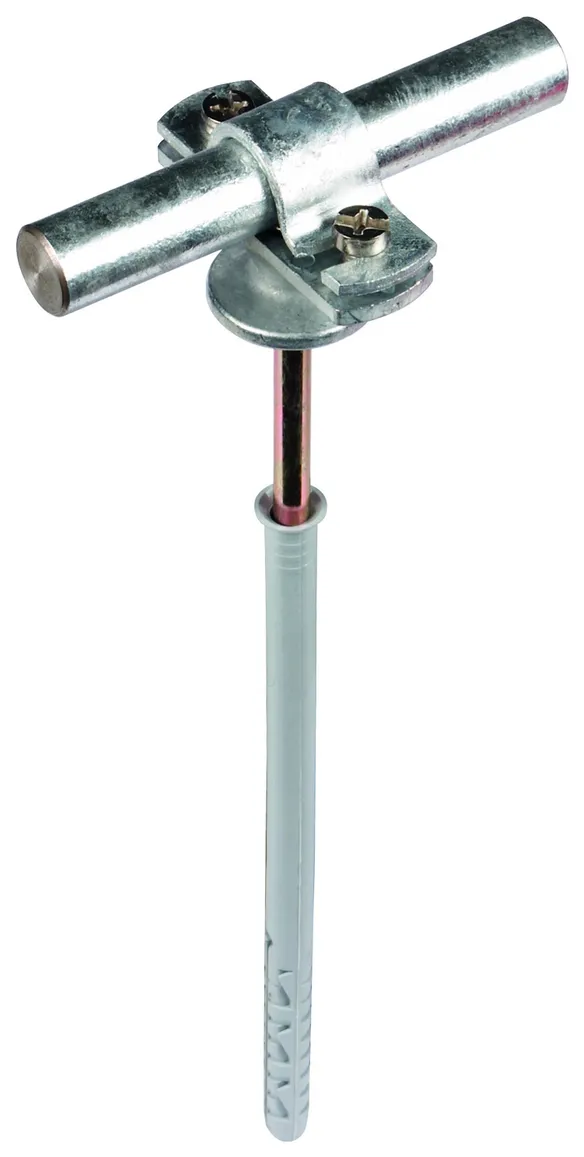

Two-screw conductor clamp with M6 screws, with flange (ZDC) and plastic plug Ø10 mm.

1 产品

货号 273731 SH ZS 16 AB D10X180 STTZN ZG

全球贸易项目代码 4013364096691, 海关HS编码: 85389099, 总重: 149.12 g, 包装单位: 1.00 pc(s)

前代产品


Open PDF

附加信息

CAD文件

Rod holder for external thermal insulation composite systems
Rod holder for external thermal insulation composite systems
Two-screw conductor clamp with M6 screws for round conductors 16 mm
Fixed conductor routing
Thickness of insulating material : approx. 110 mm
Material of saddle clamp: St/tZn
Material of base part: ZDC
Screw / plug: (TX40) 7 x 180 mm

Brand: DEHN
Type: SH ZS 16 AB D10X180 STTZN ZG
Part No.: 273731
or equivalent.

认证

技术参数

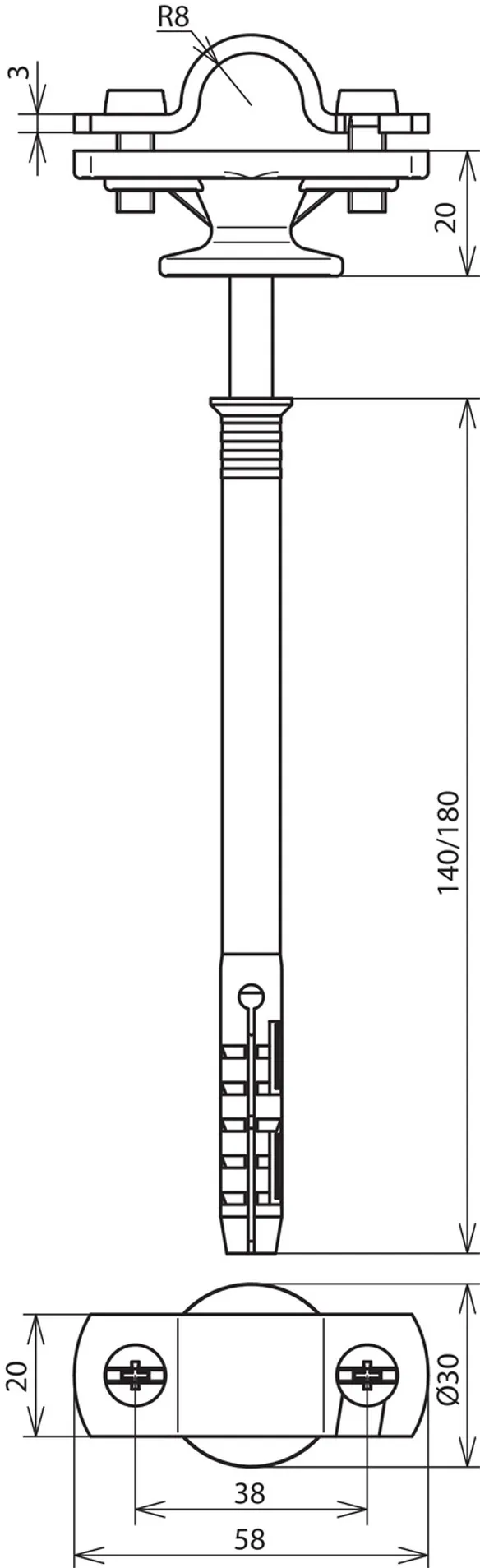

Thickness of insulating material	approx. 110 mm
Drilling depth	approx. 190 mm
Material of saddle clamp	St/tZn
Material of base part	ZDC
Height of conductor holder	20 mm
Conductor support Rd	16 mm
Screw / plug	bl (TX40) 7 x 180 mm

Type of conductor holder	two-screw clamp
Thickness of insulating material	approx. 110 mm
Drilling depth	approx. 190 mm
Material of saddle clamp	St/tZn
Material of base part	ZDC
Conductor holder screw	dm M6 x 16 mm
Height of conductor holder	20 mm
Conductor support Rd	16 mm
Conductor routing	fixed
Screw / plug	bl (TX40) 7 x 180 mm
Length	180 mm
Hole Ø	10 mm
