Rod Holders DEHNhold

For fixing air-termination and earth entry rods, with slotted saddle clamp, fixed conductor routing.
For use with different materials, e.g. Al, StSt, St/tZn and Cu.

With female thread

1 产品

货号 274116 LH ZS 16 M8 V2A

全球贸易项目代码 4013364123410, 海关HS编码: 85389099, 总重: 38.60 g, 包装单位: 50.00 pc(s)

前代产品


附加信息

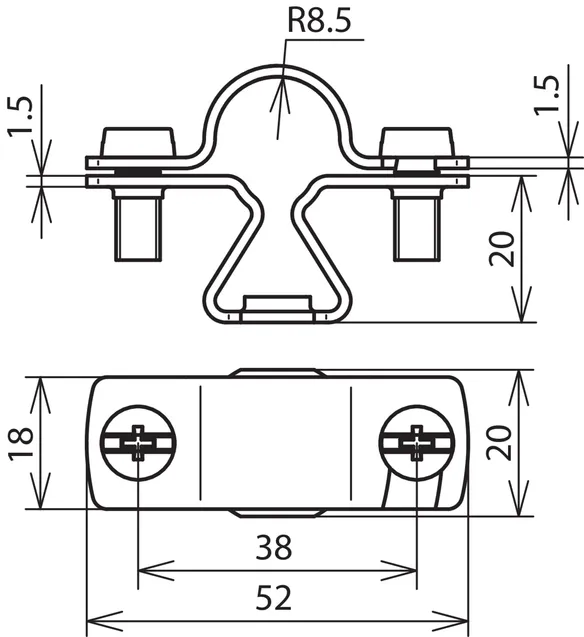

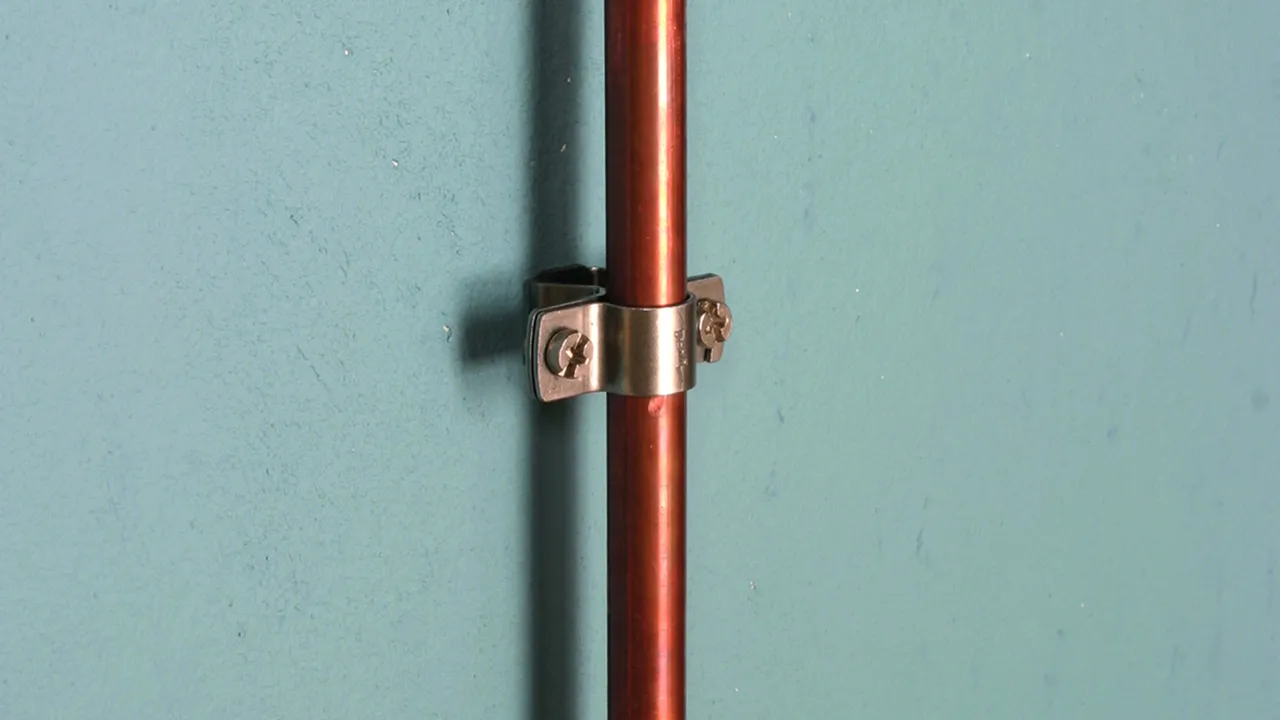

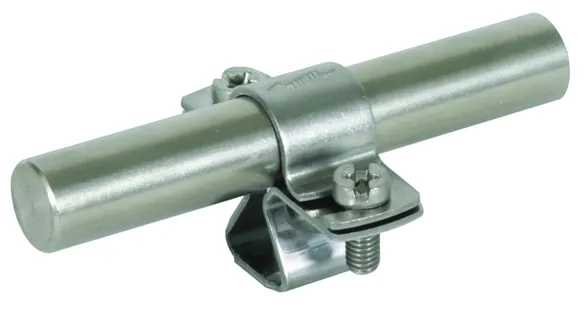

DEHNhold rod holder with female thread, StSt
DEHNhold rod holder for fixing
air-termination and earth entry rods
with slotted saddle clamp, fixed conductor routing.
Material of conductor holder: StSt
Conductor support Rd: 16 mm
Height of conductor holder: 20 mm
Thread of conductor holder: M8

Brand: DEHN
Type: LH ZS 16 M8 V2A
Part No.: 274116
or equivalent.

认证



技术参数

Material of conductor holder StSt
Conductor support Rd 16 mm
Height of conductor holder 20 mm
Thread of conductor holder M8

.产品已加入收藏夹。

进入收藏夹

商品274116加入购物车。

进入网上商店

Pre-assembled with screw, plastic base and plug

With female thread.

1 产品

货号 274260 SH ZS 16 KS KD8X40 V2A

全球贸易项目代码 4013364123489, 海关HS编码: 85389099, 总重: 49.50 g, 包装单位: 50.00 pc(s)

前代产品


附加信息

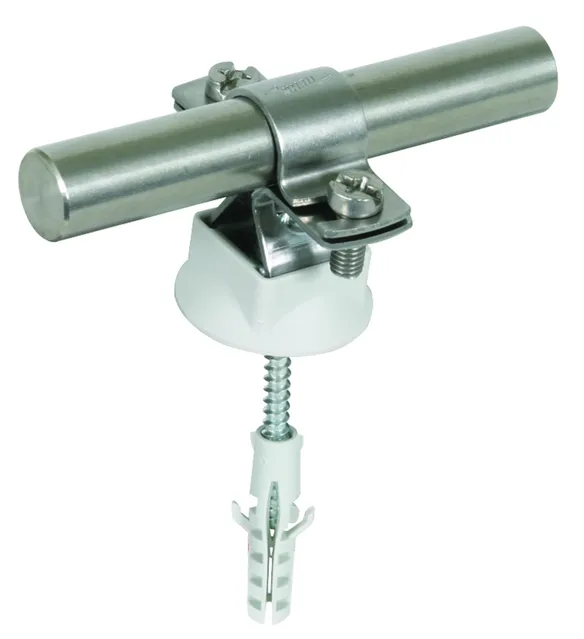

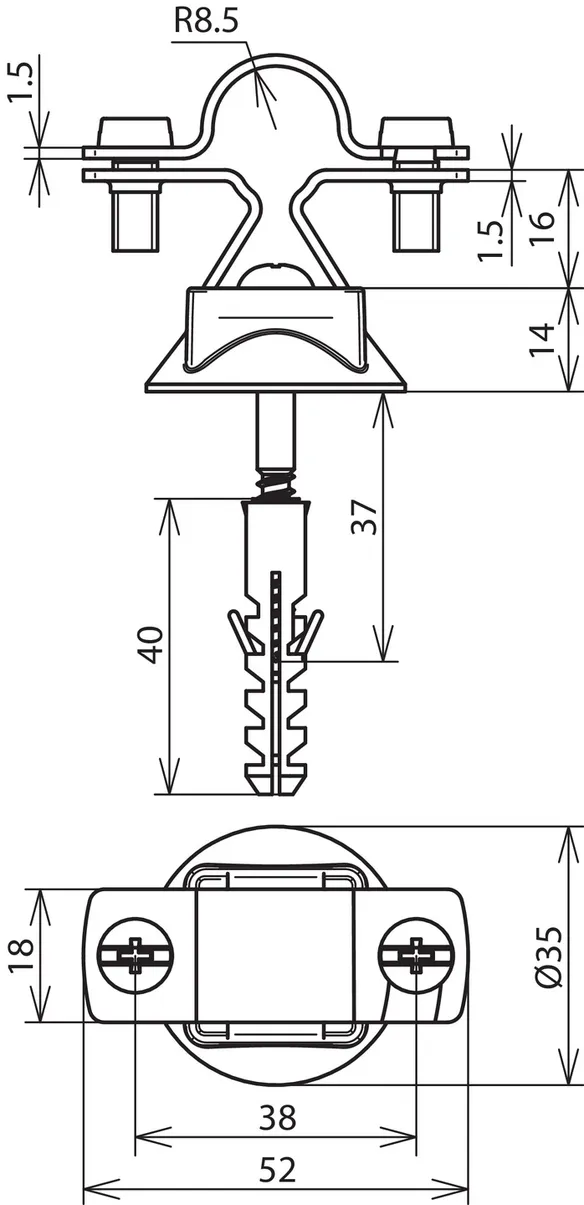

DEHNhold rod holder with female thread, pre-assembled, StSt
DEHNhold rod holder
For fixing air-termination and earth entry rods
with slotted saddle clamp, fixed conductor routing.
Pre-assembled with screw, plastic base and plug
Material of conductor holder: StSt
Conductor support Rd: 16 mm
Height of conductor holder: 20 mm
Thread of conductor holder: M8
Screw: 5 x 50 mm
Plastic dowel: Ø8 x 40 mm

Brand: DEHN
Type: SH ZS 16 KS KD8X40 V2A
Part No.: 274260
or equivalent.

认证



技术参数

Material of conductor holder StSt
Conductor support Rd 16 mm
Height of conductor holder 20 mm
Thread of conductor holder M8
Screw ak 5 x 50 mm
Plastic dowel Ø8 x 40 mm
