Conductor Holders for External Thermal Insulation Composite Systems

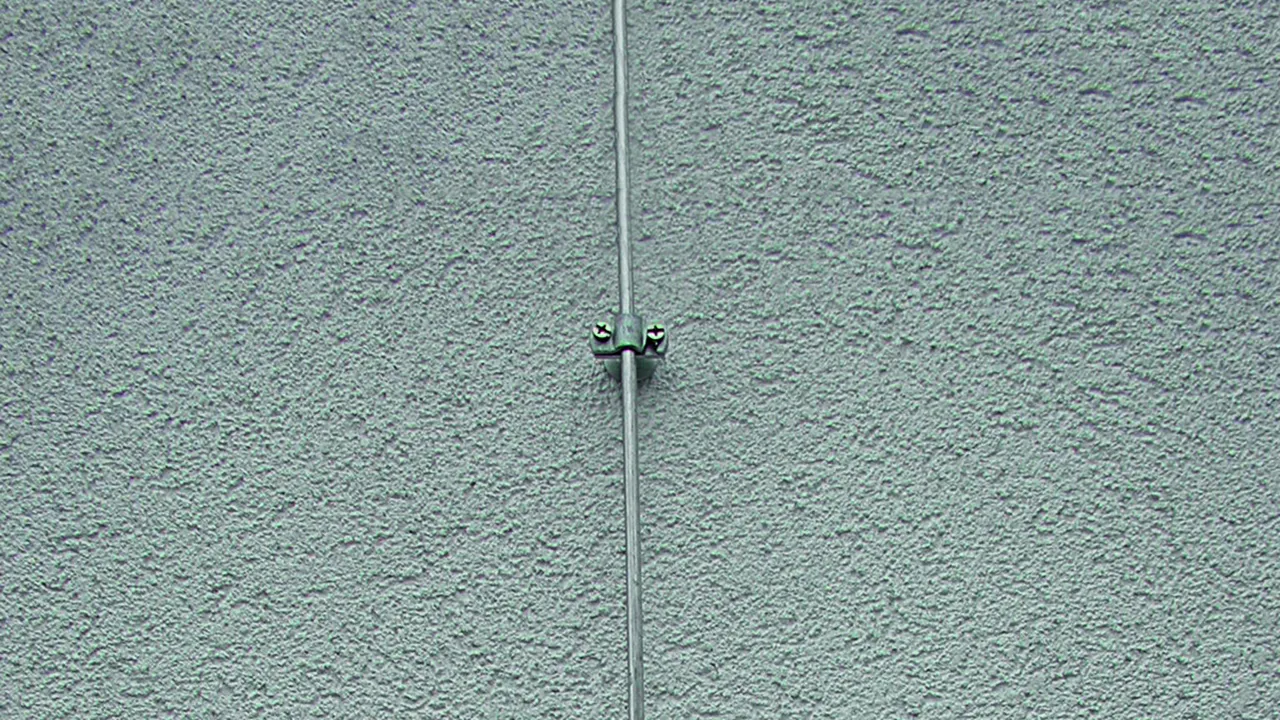

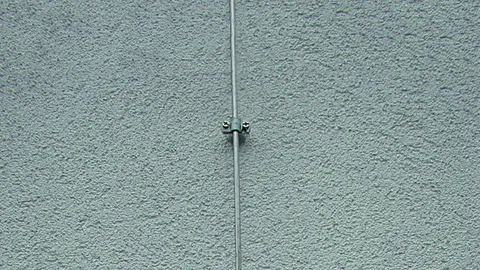

Conductor holders for fixing down conductors at walls with external thermal insulation composite system.
Two-screw clamp with M6 screws, with flange (ZDC) and plastic plug Ø10 mm, fixed conductor routing.

3 产品

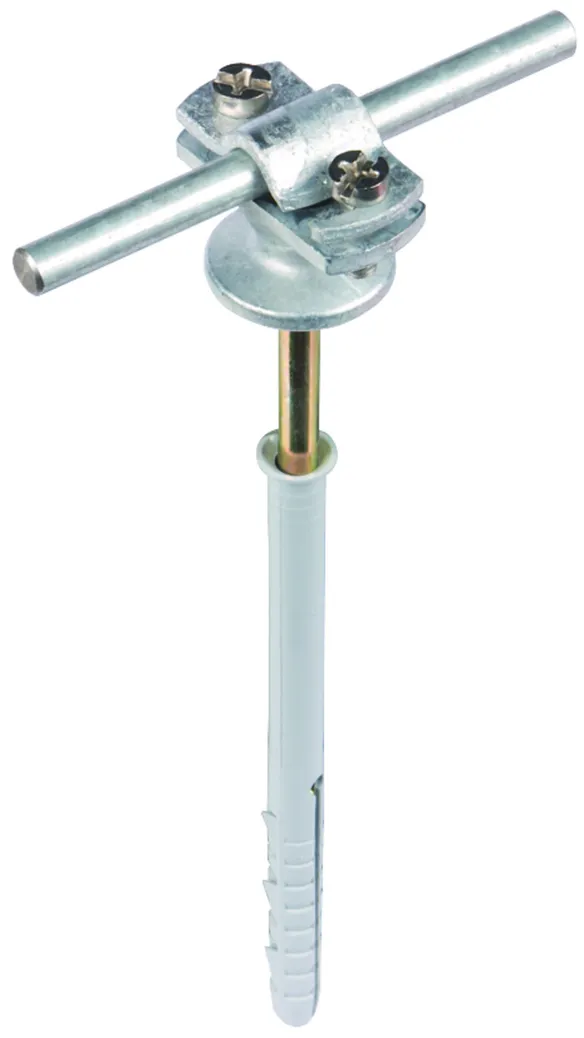

货号 273740 LH ZS 7.10 AB D10X140 STTZN ZG

全球贸易项目代码 4013364096714, 海关HS编码: 85389099, 总重: 113.00 g, 包装单位: 50.00 pc(s)

前代产品


附加信息

Conductor holder for thermal insulation composite systems
Conductor holder for thermal insulation composite systems
Two-screw clamp with M6 screws
Fixed conductor routing
Clamping length: 70 mm
Conductor support Rd: 7-10 mm
Material of base part: ZDC
Material of clamp: St/tZn
Screw, plug: (TX40) 7 x 140 mm

Brand: DEHN
Type: LH ZS 7.10 AB D10X140 STTZN ZG
Part No.: 273740
or equivalent.

认证



技术参数

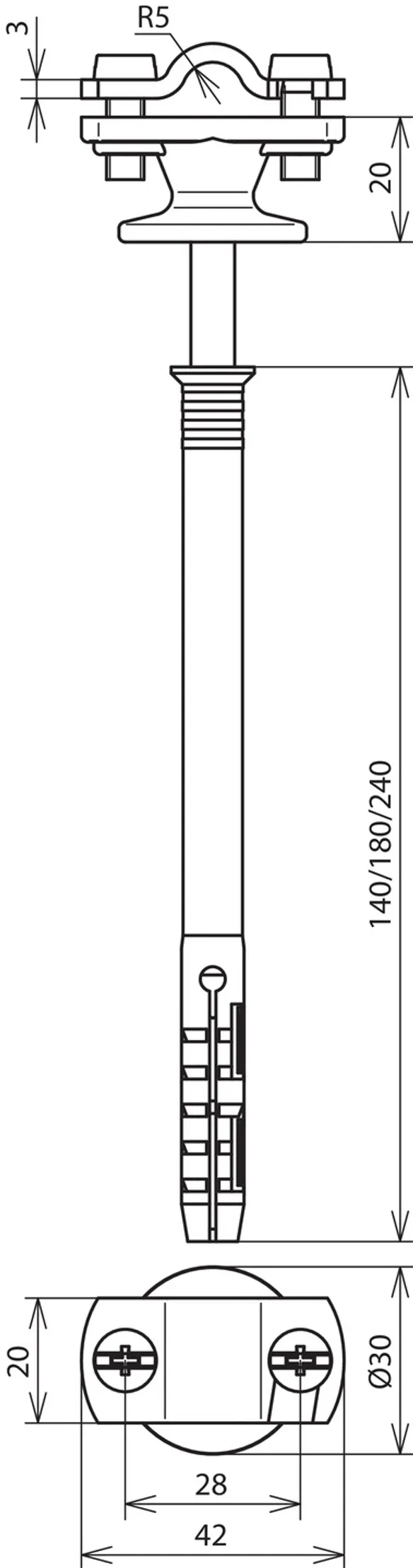

Clamping length 70 mm
Total length 140 mm
Conductor support Rd 7-10 mm
Material of base part ZDC
Material of clamp St/tZn
Height of conductor holder 20 mm
Screw, plug bl (TX40) 7 x 140 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品273740加入购物车。

进入网上商店

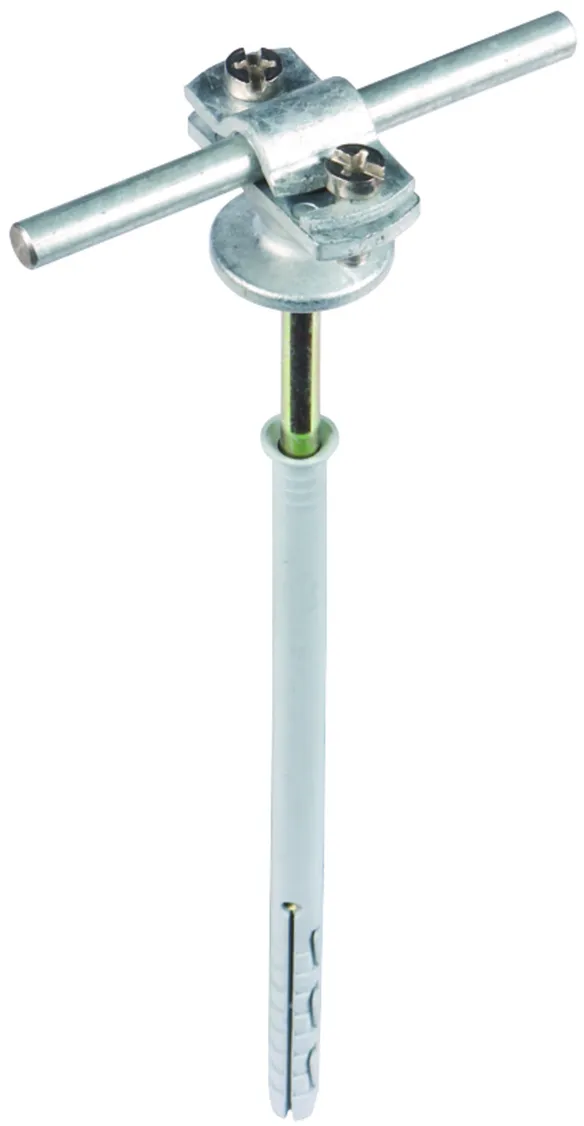

货号 273741 LH ZS 7.10 AB D10X180 STTZN ZG

全球贸易项目代码 4013364096721, 海关HS编码: 85389099, 总重: 126.22 g, 包装单位: 50.00 pc(s)


附加信息

Conductor holder for thermal insulation composite systems
Conductor holder for thermal insulation composite systems
Two-screw clamp with M6 screws
Fixed conductor routing
Clamping length: 100 mm
Conductor support Rd: 7-10 mm
Material of base part: ZDC
Material of clamp: St/tZn
Screw, plug: (TX40) 7 x 180 mm

Brand: DEHN
Type: LH ZS 7.10 AB D10X180 STTZN ZG
Part No.: 273741
or equivalent.

认证



技术参数

Clamping length 100 mm
Total length 180 mm
Conductor support Rd 7-10 mm
Material of base part ZDC
Material of clamp St/tZn
Height of conductor holder 20 mm
Screw, plug bl (TX40) 7 x 180 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品273741加入购物车。

进入网上商店

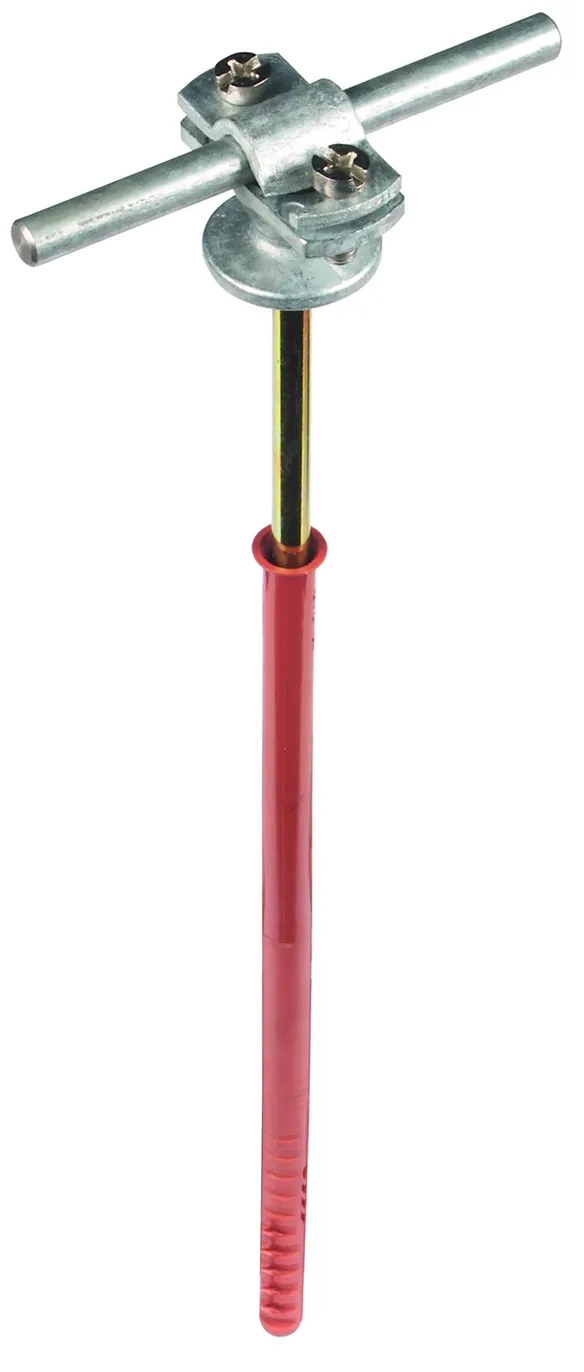

货号 273742 LH ZS 7.10 AB D10X240 STTZN ZG

全球贸易项目代码 4013364096738, 海关HS编码: 85389099, 总重: 154.76 g, 包装单位: 50.00 pc(s)


附加信息

Conductor holder for thermal insulation composite systems
Conductor holder for thermal insulation composite systems
Two-screw clamp with M6 screws
Fixed conductor routing
Clamping length: 160 mm
Conductor support Rd: 7-10 mm
Material of base part: ZDC
Material of clamp: St/tZn
Screw, plug: (TX40) 7 x 240 mm

Brand: DEHN
Type: LH ZS 7.10 AB D10X240 STTZN ZG
Part No.: 273742
or equivalent.

认证



技术参数

Clamping length 160 mm
Total length 230 mm
Conductor support Rd 7-10 mm
Material of base part ZDC
Material of clamp St/tZn
Height of conductor holder 20 mm
Screw, plug bl (TX40) 7 x 240 mm
Standard EN 62561-4
