Conductor Holders DEHNgrip

Screwless StSt holder system with loose conductor routing.

Easy installation:
– Conductor is inserted from above

Advantages:
– Conductor is fixed in the DEHNgrip
– Without screwing

Height 20 mm

4 产品

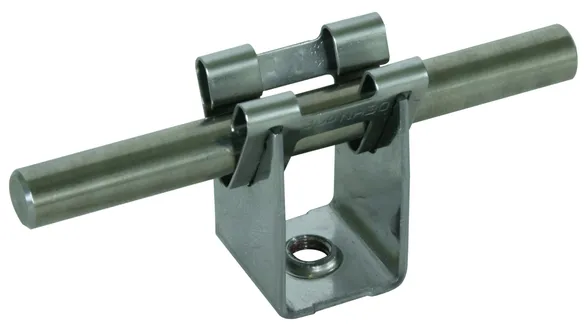

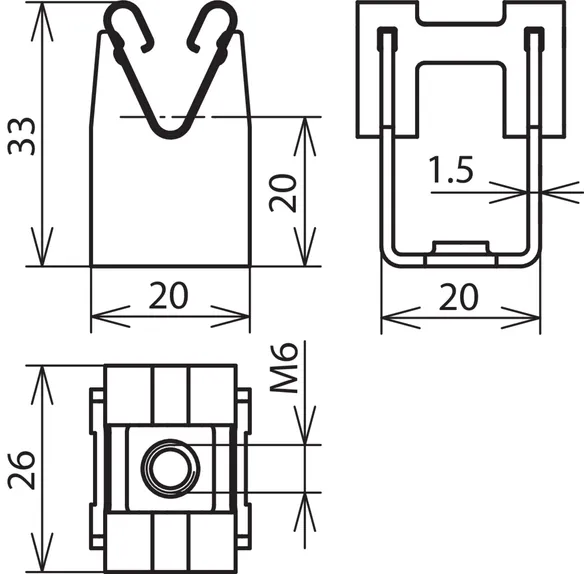

货号 207019 LH DG 8 H20 IGM6 V2A

全球贸易项目代码 4013364054912, 海关HS编码: 85389099, 总重: 21.60 g, 包装单位: 50.00 pc(s)


附加信息

DEHNgrip conductor holder, height: 20 mm, StSt
DEHNgrip conductor holder
Screwless StSt holder system
with loose conductor routing
Height of conductor holder: 20 mm
Thread of conductor holder: M6
Material of conductor holder: StSt
Conductor support Rd: 8 mm

Brand: DEHN
Type: LH DG 8 H20 IGM6 V2A
Part No.: 207019
or equivalent.

认证



技术参数

Thread of conductor holder M6
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品207019加入购物车。

进入网上商店

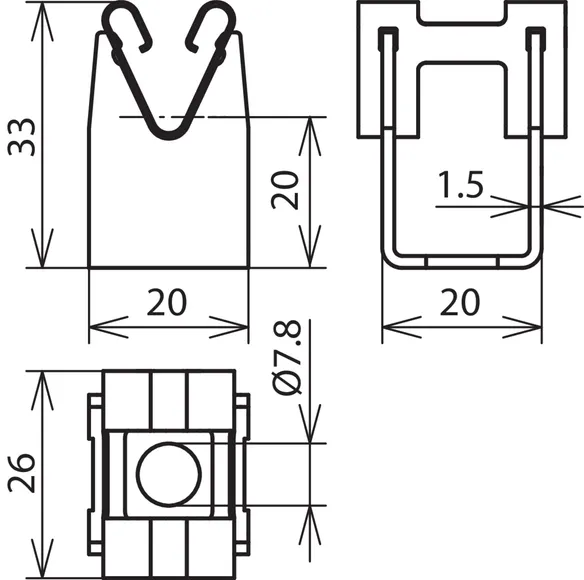

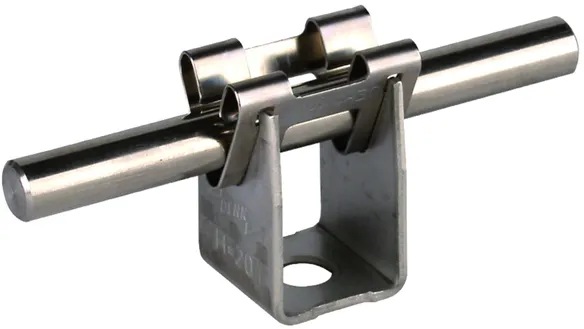

货号 207009 LH DG 8 H20 B7.8 V2A

全球贸易项目代码 4013364054882, 海关HS编码: 85389099, 总重: 16.80 g, 包装单位: 50.00 pc(s)


附加信息

DEHNgrip conductor holder, height: 20 mm, StSt
DEHNgrip conductor holder
Screwless StSt holder system
with loose conductor routing
Height of conductor holder: 20 mm
Hole of conductor holder: Ø7.8 mm
Material of conductor holder: StSt
Conductor support Rd: 8 mm

Brand: DEHN
Type: LH DG 8 H20 B7.8 V2A
Part No.: 207009
or equivalent.

认证



技术参数

Hole of conductor holder Ø7.8 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品207009加入购物车。

进入网上商店

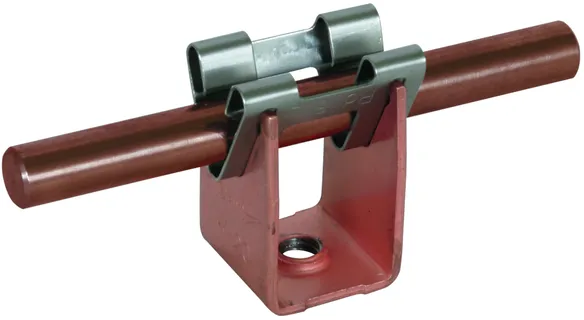

货号 207017 LH DG 8 H20 IGM6 CU

全球贸易项目代码 4013364054905, 海关HS编码: 85389099, 总重: 18.00 g, 包装单位: 50.00 pc(s)


附加信息

DEHNgrip conductor holder, height: 20mm, copper
DEHNgrip conductor holder
Screwless copper holder system
with loose conductor routing
Height of conductor holder: 20 mm
Thread of conductor holder: M6
Material of conductor holder: Cu
Conductor support Rd: 8 mm

Brand: DEHN
Type: LH DG 8 H20 IGM6 CU
Part No.: 207017
or equivalent.

认证



技术参数

Thread of conductor holder M6
Material of conductor holder Cu
Conductor support Rd 8 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品207017加入购物车。

进入网上商店

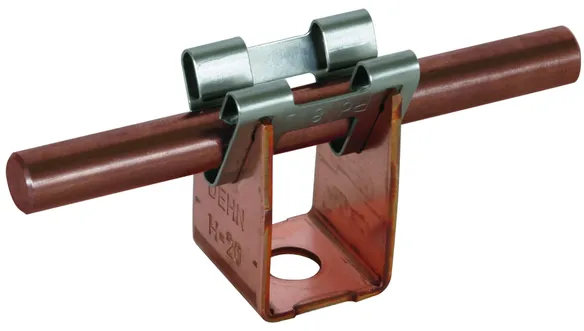

货号 207007 LH DG 8 H20 B7.8 CU

全球贸易项目代码 4013364054899, 海关HS编码: 85389099, 总重: 17.70 g, 包装单位: 50.00 pc(s)


附加信息

DEHNgrip conductor holder, height: 20mm, copper
DEHNgrip conductor holder
Screwless copper holder system
with loose conductor routing
Height of conductor holder: 20 mm
Hole of conductor holder: Ø7.8 mm
Material of conductor holder: Cu
Conductor support Rd: 8 mm

Brand: DEHN
Type: LH DG 8 H20 B7.8 CU
Part No.: 207007
or equivalent.

认证



技术参数

Hole of conductor holder Ø7.8 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品207007加入购物车。

进入网上商店

Height 32 mm

4 产品

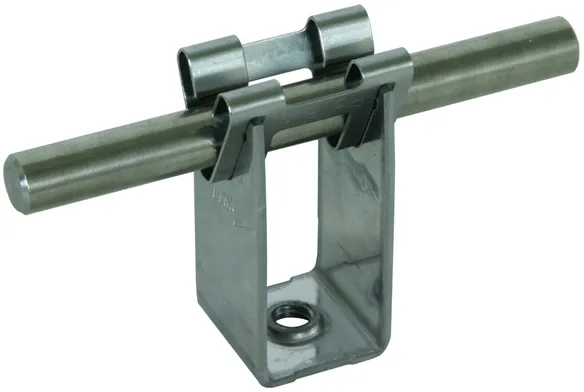

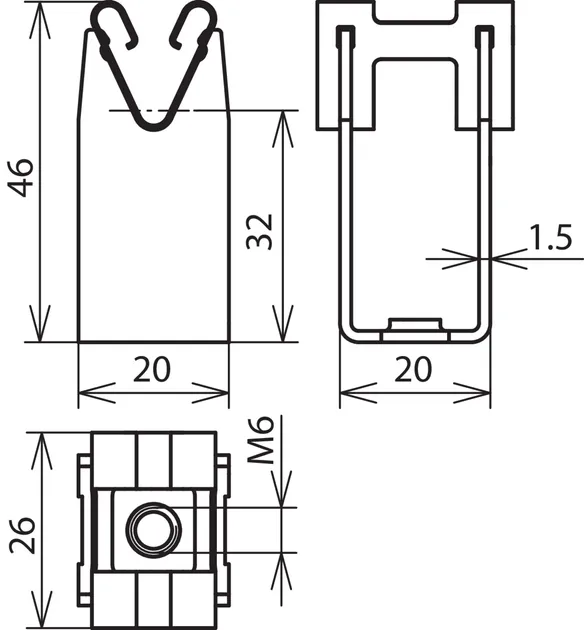

货号 207039 LH DG 8 H32 IGM6 V2A

全球贸易项目代码 4013364042735, 海关HS编码: 85389099, 总重: 25.40 g, 包装单位: 50.00 pc(s)


附加信息

DEHNgrip conductor holder, height: 32 mm, StSt
DEHNgrip conductor holder
Screwless StSt holder system
with loose conductor routing
Height of conductor holder: 32 mm
Thread of conductor holder: M6
Material of conductor holder: StSt
Conductor support Rd: 8 mm

Brand: DEHN
Type: LH DG 8 H32 IGM6 V2A
Part No.: 207039
or equivalent.

认证



技术参数

Thread of conductor holder M6
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品207039加入购物车。

进入网上商店

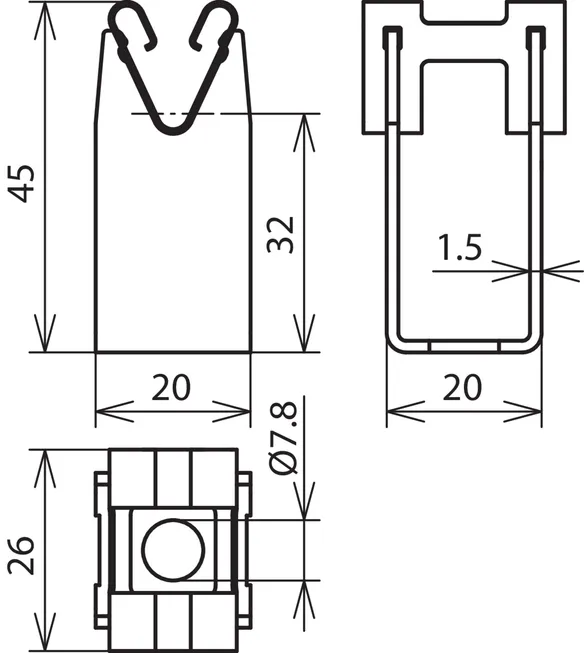

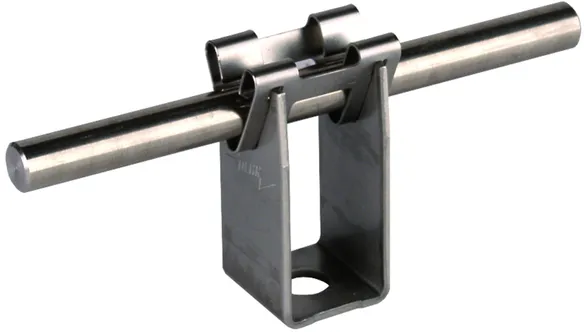

货号 207029 LH DG 8 H32 B7.8 V2A

全球贸易项目代码 4013364042711, 海关HS编码: 85389099, 总重: 25.60 g, 包装单位: 50.00 pc(s)


附加信息

DEHNgrip conductor holder, height: 32 mm, StSt
DEHNgrip conductor holder
Screwless StSt holder system
with loose conductor routing
Height of conductor holder: 32 mm
Hole of conductor holder: Ø7.8 mm
Material of conductor holder: StSt
Conductor support Rd: 8 mm

Brand: DEHN
Type: LH DG 8 H32 B7.8 V2A
Part No.: 207029
or equivalent.

认证



技术参数

Hole of conductor holder Ø7.8 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品207029加入购物车。

进入网上商店

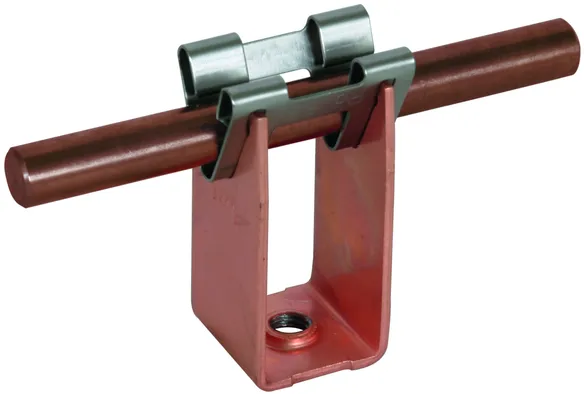

货号 207037 LH DG 8 H32 IGM6 CU

全球贸易项目代码 4013364042742, 海关HS编码: 85389099, 总重: 27.60 g, 包装单位: 50.00 pc(s)


附加信息

DEHNgrip conductor holder, height: 32mm, copper
DEHNgrip conductor holder
Screwless copper holder system
with loose conductor routing
Height of conductor holder: 32 mm
Thread of conductor holder: M6
Material of conductor holder: Cu
Conductor support Rd: 8 mm

Brand: DEHN
Type: LH DG 8 H32 IGM6 CU
Part No.: 207037
or equivalent.

认证



技术参数

Thread of conductor holder M6
Material of conductor holder Cu
Conductor support Rd 8 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品207037加入购物车。

进入网上商店

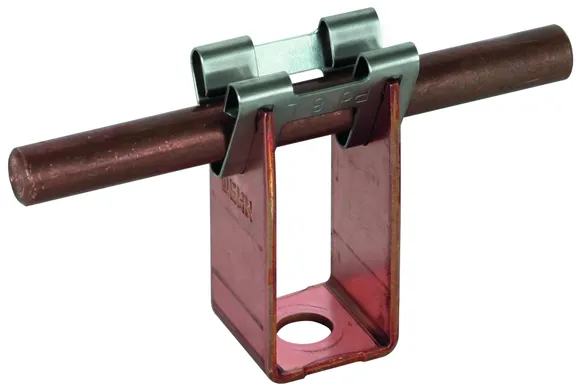

货号 207027 LH DG 8 H32 B7.8 CU

全球贸易项目代码 4013364042728, 海关HS编码: 85389099, 总重: 27.80 g, 包装单位: 50.00 pc(s)


附加信息

DEHNgrip conductor holder, height: 32mm, copper
DEHNgrip conductor holder
Screwless copper holder system
with loose conductor routing
Height of conductor holder: 32 mm
Hole of conductor holder: Ø7.8 mm
Material of conductor holder: Cu
Conductor support Rd: 8 mm

Brand: DEHN
Type: LH DG 8 H32 B7.8 CU
Part No.: 207027
or equivalent.

认证



技术参数

Hole of conductor holder Ø7.8 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品207027加入购物车。

进入网上商店

Height 20 mm, pre-assembled with screw, plastic base and plug

2 产品

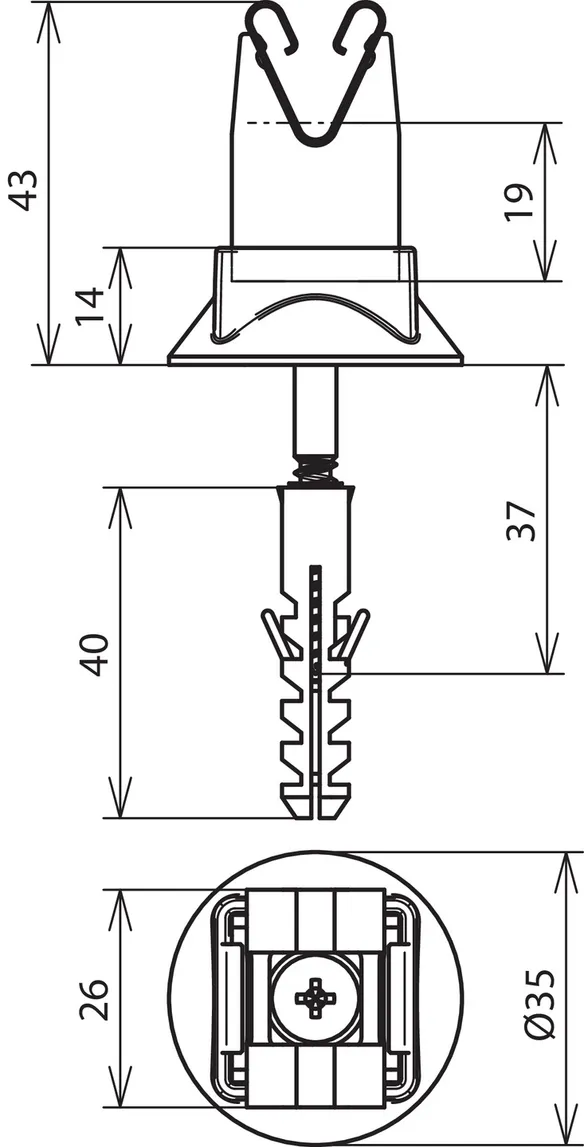

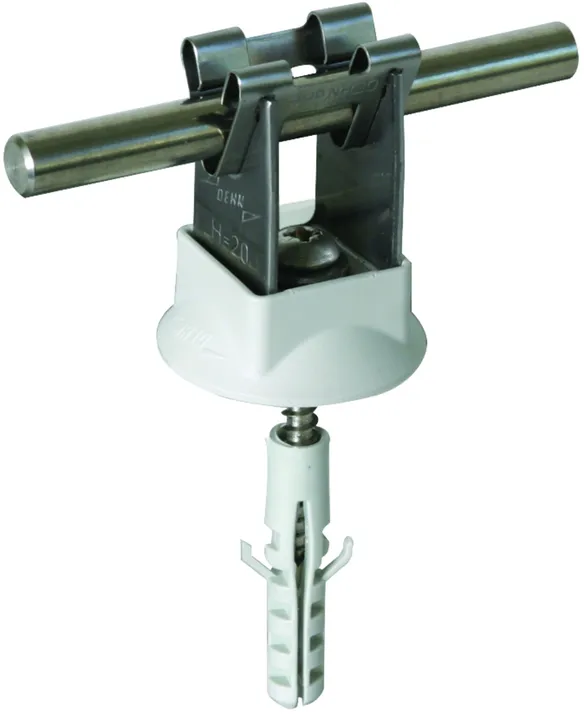

货号 207109 LH DG 8 H20 HS5X50 KD8 V2A GR

全球贸易项目代码 4013364085800, 海关HS编码: 85389099, 总重: 29.00 g, 包装单位: 50.00 pc(s)


附加信息

DEHNgrip conductor holder, height: 20 mm, StSt
DEHNgrip conductor holder
Screwless StSt holder system
with loose conductor routing
Preassembled with screw,
Plastic base (grey) and anchor
Height of conductor holder: 20 mm
Hole of conductor holder: Ø7.8 mm
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Screw: 5 x 50 mm

Brand: DEHN
Type: LH DG 8 H20 HS5X50 KD8 V2A GR
Part No.: 207109
or equivalent.

认证



技术参数

Hole of conductor holder Ø7.8 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Screw ak 5 x 50 mm
Plastic plug Ø8 x 40 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品207109加入购物车。

进入网上商店

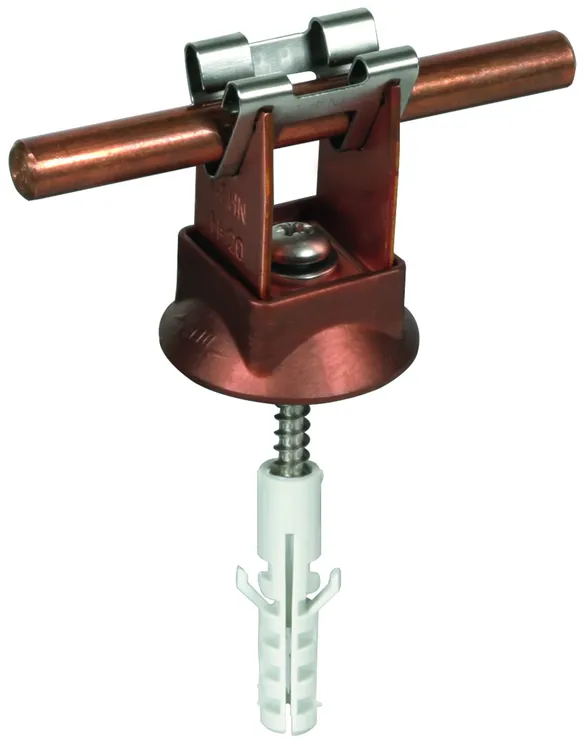

货号 207107 LH DG 8 H20 HS5X50 KD8 CU BR

全球贸易项目代码 4013364235649, 海关HS编码: 85389099, 总重: 32.00 g, 包装单位: 50.00 pc(s)


附加信息

DEHNgrip conductor holder, height: 20 mm, copper
DEHNgrip conductor holder
Screwless copper holder system
with loose conductor routing
Preassembled with screw,
Plastic base (brown) and anchor
Height of conductor holder: 20 mm
Hole of conductor holder: Ø7.8 mm
Material of conductor holder: Cu
Conductor support Rd: 8 mm
Screw: 5 x 50 mm

Brand: DEHN
Type: LH DG 8 H20 HS5X50 KD8 CU BR
Part No.: 207107
or equivalent.

认证



技术参数

Hole of conductor holder Ø7.8 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Screw ak 5 x 50 mm
Plastic plug Ø8 x 40 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品207107加入购物车。

进入网上商店
