货号 994101 DCC 2

全球贸易项目代码 4013364542181, 海关HS编码: 90303900, 总重: 1.68 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

CAD文件

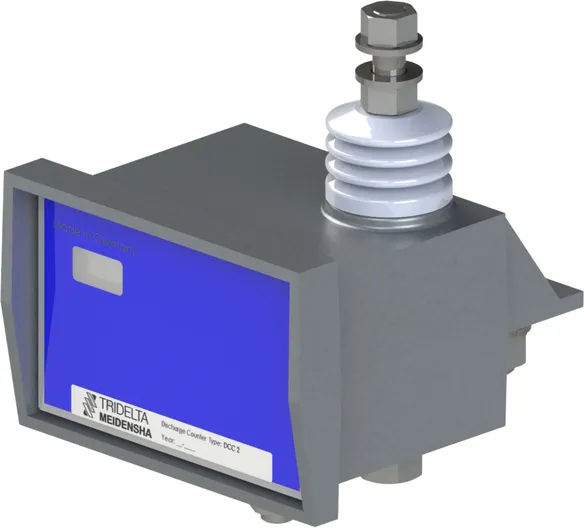

Impulse counter DCC 2
with register for registering discharge processes
Quick acquisition of values
Corrosion-resistant
min. sensitivity: 100 A (8/20 µs)
Max. high-current surge resistance: 100 kA (4/10 µs)
Connection bolt: M12
Aluminium enclosure: IP 67; grey

Brand: DEHN
Type: DCC 2
Part No.: 994101
or equivalent.

技术参数

Register

six-digit

Register	six-digit
Min. sensitivity of the counting current	100 A (8/20 µs)
Max. high current resistance	100 kA (4/10 µs)
Voltage drop at 20 kA (8/20 µs)	1 kV s
Max. counting speed	5 counts per second
Housing material	powder-coated aluminium
Colour	grey
Earth-side connection	M12 threaded pin with two nuts StSt
Phase-side connection	M12 threaded pin with two nuts StSt
Housing attachment	rear lug / M12 or additional fixing angle

.产品已加入收藏夹。

进入收藏夹

商品994101加入购物车。

进入网上商店

货号 994102 DCC-M 2

全球贸易项目代码 4013364542198, 海关HS编码: 90303900, 总重: 1.81 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

CAD文件

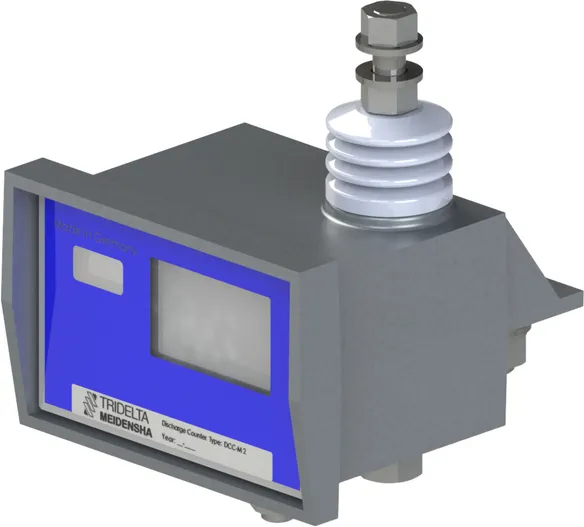

Impulse counter DCC-M 2
with register and measuring scale for registration
discharge processes and the recording
leakage currents
Quick acquisition of values
Corrosion-resistant
min. sensitivity: 100 A (8/20 µs)
Max. high-current surge resistance: 100 kA (4/10 µs)
Measuring scale: 0–31 mArms
Connection bolt: M12
Aluminium enclosure: IP 67; grey

Brand: DEHN
Type: DCC-M 2
Part No.: 994102
or equivalent.

技术参数

Register	six-digit
Measuring scale	0-30 mA_rms

Register	six-digit
Min. sensitivity of the counting current	100 A (8/20 µs)
Max. high current resistance	100 kA (4/10 µs)
Voltage drop at 20 kA (8/20 µs)	1 kV s
Measuring scale	0-30 mA_rms
Max. counting speed	5 counts per second
Housing material	powder-coated aluminium
Colour	grey
Earth-side connection	M12 threaded pin with two nuts StSt
Phase-side connection	M12 threaded pin with two nuts StSt
Housing attachment	rear lug / M12 or additional fixing angle

.产品已加入收藏夹。

进入收藏夹

商品994102加入购物车。

进入网上商店

货号 994104 DCC/RC 2

全球贸易项目代码 4013364542204, 海关HS编码: 90303900, 总重: 1.74 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

CAD文件

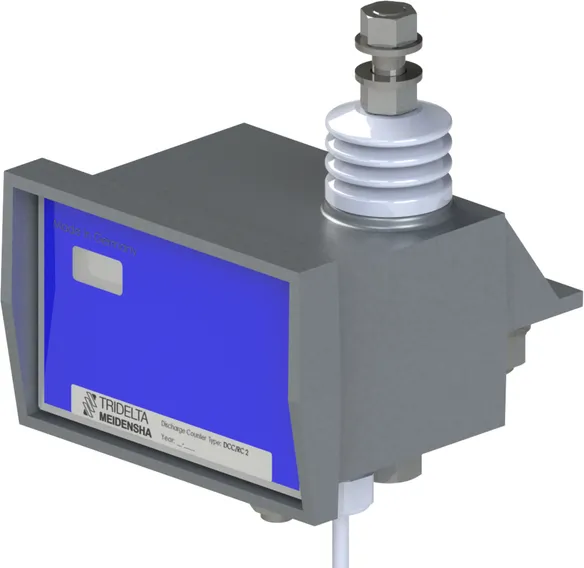

Impulse counter DCC/RC 2
with register for registration of discharge processes
with remote signalling contact
Quick acquisition of values
Corrosion-resistant
min. sensitivity: 100 A (8/20 µs)
Max. high-current surge resistance: 100 kA (4/10 µs)
Connection bolt: M12
Aluminium enclosure: IP 67; grey

Brand: DEHN
Type: DCC/RC 2
Part No.: 994104
or equivalent.

技术参数

Register

six-digit

Register	six-digit
Min. sensitivity of the counting current	100 A (8/20 µs)
Max. high current resistance	100 kA (4/10 µs)
Voltage drop at 20 kA (8/20 µs)	1 kV s
Max. counting speed	5 counts per second
Housing material	powder-coated aluminium
Colour	grey
Earth-side connection	M12 threaded pin with two nuts StSt
Phase-side connection	M12 threaded pin with two nuts StSt
Housing attachment	rear lug / M12 or additional fixing angle
Type of remote signalling contact	make contact
Switching capacity (a.c.)	250 V / 0.5 A
Length of two-wire cable (make contact)	approx. 0.4 m

.产品已加入收藏夹。

进入收藏夹

商品994104加入购物车。

进入网上商店

货号 994105 DCC-M/RC 2

全球贸易项目代码 4013364542211, 海关HS编码: 90303900, 总重: 1.81 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

CAD文件

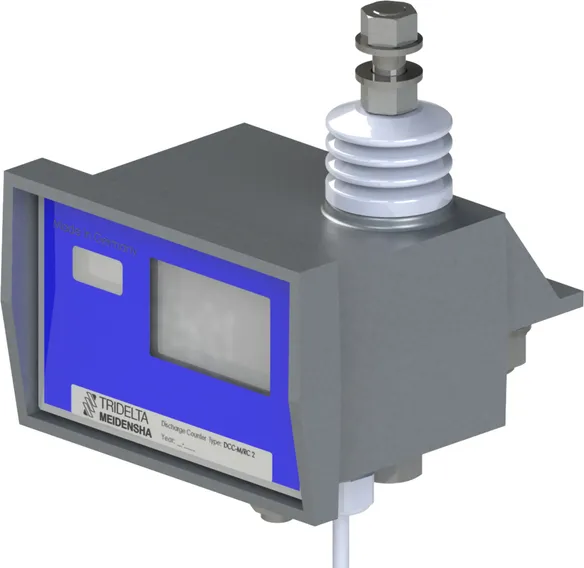

Impulse counter DCC-M/RC 2
with register and measuring scale for registration
discharge processes and the recording
leakage currents
with remote signalling contact
Quick acquisition of values
Corrosion-resistant
Min. sensitivity: 100 A (8/20)
Max. high-current surge resistance: 100 kA (4/10 µs)
Measuring scale: 0–30 mArms
Connection bolt: M12
Aluminium enclosure: IP 67; grey

Brand: DEHN
Type: DCC-M/RC 2
Part No.: 994105
or equivalent.

技术参数

Register	six-digit
Measuring scale	0-30 mA_rms

Register	six-digit
Min. sensitivity of the counting current	100 A (8/20 µs)
Max. high current resistance	100 kA (4/10 µs)
Voltage drop at 20 kA (8/20 µs)	1 kV s
Measuring scale	0-30 mA_rms
Max. counting speed	5 counts per second
Housing material	powder-coated aluminium
Colour	grey
Earth-side connection	M12 threaded pin with two nuts StSt
Phase-side connection	M12 threaded pin with two nuts StSt
Housing attachment	rear lug / M12 or additional fixing angle
Type of remote signalling contact	Make contact
Switching capacity (a.c.)	250 V / 0.5 A
Length of two-wire cable (make contact)	approx. 0.4 m

.产品已加入收藏夹。

进入收藏夹

商品994105加入购物车。

进入网上商店
